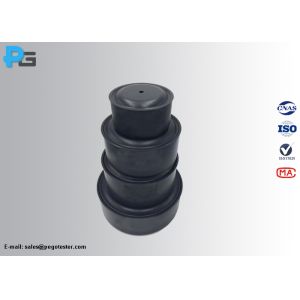

Standard Pan with Lid Compliant to GB21456 for Testing Energy Efficiency of Induction Cookers Made of Q235 Steel with 1.5mm and 2mm Wall Thickness

Product Categories

Electrical Safety Test Equipment [188]
Environment Test Equipment [62]
Impact Test Equipment [76]
EMC Test Equipment [27]
Lamp Cap Gauge [30]
Test Finger Probe [102]
Plug Socket Tester [81]
Appliance Couplers Testing Equipment [12]
Induction Cooker Vessels [20]
IP Testing Equipment [65]
Type C Goniophotometer [9]
Led Testing Equipment [33]
Integrating Sphere Spectrophotometer [8]
Transformer Testing Equipment [10]
Ac Dc Power Supply [10]

Pego Electronics (Yi Chun) Company Limited

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Standard Pan with Lid Compliant to GB21456 for Testing Energy Efficiency of Induction Cookers Made of Q235 Steel with 1.5mm and 2mm Wall Thickness

MOQ : 1 set

Price : USD300-USD1500

Payment Terms : T/T

Supply Ability : 50 sets/month

Delivery Time : 5-10 days

Packaging Details : carton

Normative standard : GB 21456

Material : Q235 steel with maximum carbon content less than 0.08%

Application : for evaluating the energy efficiency and energy efficiency grade of household induction cookers

Wall thickness : 1.5mm and 2mm

Contact Now

Standard Pan with Lid for Testing Energy Efficiency and Energy Efficiency Grade of Induction Cookers Compliant to GB21456

Introduction

The standard pans with lids is designed according to GB21456 Annex A, for testing the energy efficiency and energy efficiency of household induction cookers. The pan and lid are made of Q235 steel, wich has a maximum carbon content of 0.08%,

The surface of the pan and the lid is smooth and polished to prevent rust. The thickness of the lid (t) is 1mm, the bottom of the pan can not convex outward, and the maximum concavity at the bottom is 0.6% times the effective diameter.

2. Specification

Size of vessels
Figure No.	A/mm	B/mm	H/mm	t/mm	Volume/L
B1	Φ140	Φ120	75	1.5	1
B2	Φ200	Φ180	95	1.5	3
B3	Φ220	Φ200	110	1.5	4
B4	Φ280	Φ260	105	2.0	6

Standard Pan with Lid Compliant to GB21456 for Testing Energy Efficiency of Induction Cookers Made of Q235 Steel with 1.5mm and 2mm Wall Thickness

Size of lids
Figure No.	A/mm	B/mm	C/mm	t/mm
B1	Φ82	Φ126	Φ146	1.0
B2	Φ142	Φ186	Φ206	1.0
B3	Φ162	Φ206	Φ226	1.0
B4	Φ222	Φ266	Φ286	1.0

Standard Pan with Lid Compliant to GB21456 for Testing Energy Efficiency of Induction Cookers Made of Q235 Steel with 1.5mm and 2mm Wall Thickness
