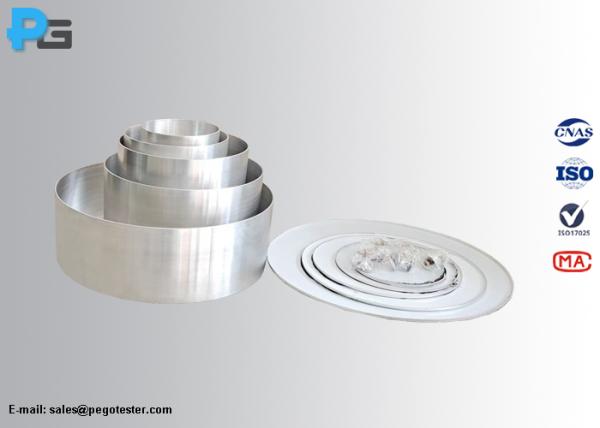

Unpolished Aluminum Vessels for IEC60335-2-6 Compliant Cooking Tests with 110mm to 300mm Diameter and 2mm Wall Thickness

Name: Unpolished Aluminum Vessels for IEC6033526 Compliant Cooking Tests with 110mm to 300mm Diameter and 2mm Wall Thickness
Brand: Pego Electronics
Price: 300 USD

Quality Unpolished Aluminum Vessels for IEC60335-2-6 Compliant Cooking Tests with 110mm to 300mm Diameter and 2mm Wall Thickness for sale

Brand Name : Pego Electronics

Model Number : PG-AV

Certification : CNAS Calibration Certificate

Place of Origin : China

MOQ : 1 set

Price : USD300-USD2000

Payment Terms : T/T

Supply Ability : 50 sets/month

Delivery Time : 3-20 days

Packaging Details : carton

Normative standards : IEC60335-2-9, IEC60335-2-6, EN30-1-1, GB4706.14, GB16410

Material : unpolished commercial quality aluminum

Diameter of vessels : 110mm, 145mm, 180mm, 220mm, 300mm

Wall thickness : 2mm

Base thickness : 8mm, 9mm, 10mm

Contact Now

Upolished Aluminum Vessels for Normal Operation Test to Hotplates and Hob Elements IEC60335-2-6

1. Introduction

The upolished aluminum vessels is to simulate cooking appliances to perform normal opeation test to hotplates, hob elements and electric cooking plate. The vessels are made of unpolished commercial quality aluminum, have a flat bottom and are covered with lid. The base of the vessel shall not be convex. The concavity of the base of the vessel shall not exceed 0.05mm.

The aluminum vessels is designed according to IEC60335-2-9 figure 103, IEC60335-2-6 figure 101, EN30-1-1 figure C2, GB4706.14 figure 103 and GB16410 figure 7.

2. Specification

Diameter of Cooking zone (mm)	Approximate of Dimension
Diameter of Cooking zone (mm)	a (mm)	b (mm)	c (mm)
≤110	110	140	8
>110≤145	145	140	8
>145≤180	180	140	9
>180≤220	220	120	10
>220≤300	300	100	10
