Portable Built-In Sensor Push-Pull Force Meter 50N/100N/200N/500N/1KN Range Optional
1. Features
1). High accuracy and resolution
2). Peak hold function
3). Peak automatic clearance function (1-9 seconds)
4). Tolerance limit (upper and lower limit)
5). Light for judging qualified and unqualified value
6). Long stand-by time and utility time, with lithium battery and low power chip
7). 30 memory data for calculate the average, max, min value
8). Automatic power off function (0~99 minutes)
9). 3 units available (N, Kn/kgf, gf, tf/lbf, k lbf)
10). Full range 150% overload
11). Reset acceleration of gravity function (0.700-9.900)
12). LCD screen turn direction function
13). Inductive background light
14). RS-232C to USB port
15). 2 sets installation size (145*30mm M3/ 90*40mm M4)
16). Signal output function a: exceeding the set point to send a signal to control other equipment
17). Signal output function: b: break stop function, match our motorized test stand for get the stop function when the material break
18). Match synchronous analysis software, which can connect to PC to get synchronous graph, and also can reseve, print and analysis.
2. Parameter
| Model | HP-2 | HP-3 | HP-5 | HP-10 | HP-20 | HP-30 | HP-50 | HP-100 | HP-200 | HP-300 | HP-500 | HP-1K |
| Max. range | 2N | 3N | 5N | 10N | 20N | 30N | 50N | 100N | 200N | 300N | 500N | 1KN |
| Resolution | 0.001N | 0.001N | 0.001N | 0.01N | 0.01N | 0.01N | 0.01N | 0.1N | 0.1N | 0.1N | 0.1N | 0.0001KN |
| Sensor | Built-in |
| Accuracy | ±0.5% |
| Dimension | 230x66x36mm |
| Unit | N/KN, g/kg, lb |
| RS-232C | RS232C connect to PC |
| Power | lithium battery 5v 1700mAh |
| Working voltage | AC 110~240V, 50-60Hz, 200mA |
| Load | cell inside |
| working temperature | 5℃~35℃ |
| relative humidity | 15%~80% RH |

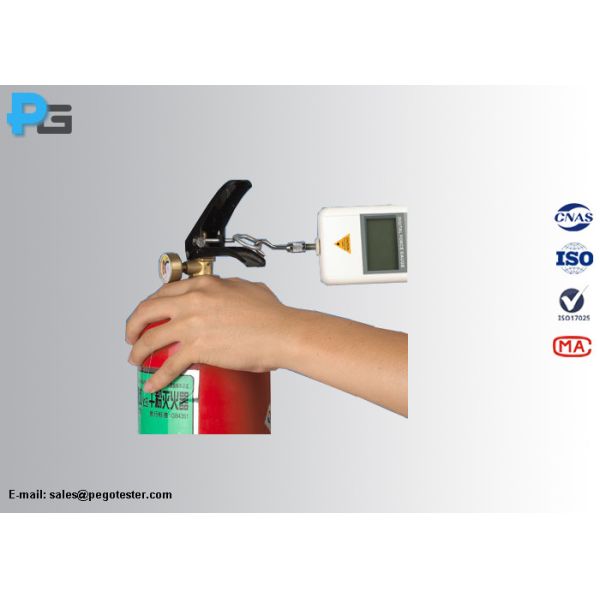

3. Picture
4. Installation size
5. About Pego Group
Pego Tester (Jiangxi) is founded by PEGO GROUP in 2011, a professional high-tech enterprise engaged in developing, marketing and service for electronic test equipment. Our business scope includes IEC60061-3 gauges for lamp caps and holders,UL498/VDE0620/BS1363-1 gauges for plug and socket, IEC61032 IP code probes, UL probes, flame test apparatus, glow-wire test apparatus, tracking index apparatus, needle flame test apparatus, ground resistance tester, insulating resistance tester, hipot tester, temperature chamber, waterproof test equipment, dust chamber, spring hammer, pendulum hammer, tumbling barrel test equipment, test vessels, ESD gun, surge generator, goniophotometer, integrating sphere, spectroradiometer, power supply and etc. Besides, we can provide customized service.
Nowadays, we have several production lines in China, we imported advance technology and machines to make the gauges to keep high precision, and use the world famous-brand components to make the equipment more reliable. We promise the customers can get the high quality products during the shortest lead time, and we can provide the third-lab calibration certificates if customer request. The Pego’s products have been sold to the world wide, and widely used in labs, production line, QC and R&D departments with the features of high precision, simple operation, humanization design and good performance.
To Provide better user experience with better quality and better price is the motto of Pego. With the growth of test items, PEGO hope to grow with our users, and search for better test solution for our users.
